Solve

 Please make a program to solve design problem. You can use a programming language you are comfortable with (python, C++, Java etc.) All. Then please summarize approach/program in the form of a presentation 2 slides for each questions. I expected to submit the program and result.

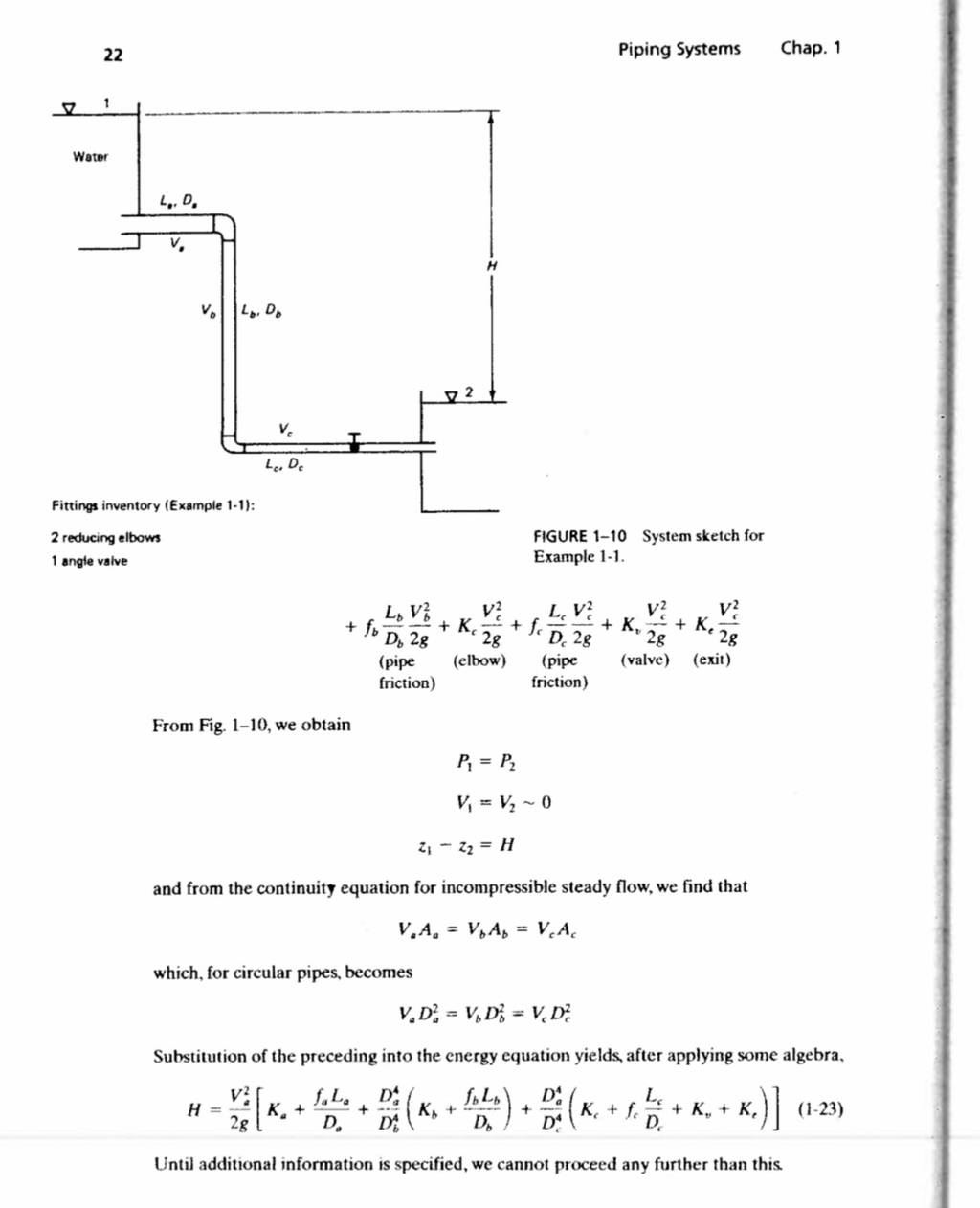

Question  -1 For the system illustrated in example 1-1, specify the nominal size of clean commercial pipes required for a flow rate of 0.2 ft3/sec if the following are given

Da=Db=Dc

La=200ft

Lb=20ft

Lc=80ft

H=75  ft

Question  -1 For the system illustrated in example 1-1, specify the nominal size of clean commercial pipes required for a flow rate of 0.2 ft3/sec if the following are given

Da=Db=Dc

La=200ft

Lb=20ft

Lc=320ft

H=75  ft

i download files might help you.
