Photovoltaic-SOFC Hybrid System with Single Phase Five Level Inverter

profileAmir225693

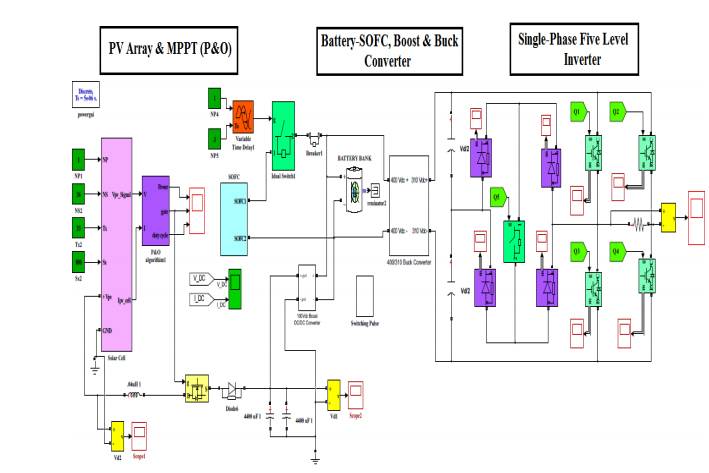

i want Matlab Simulation model on given topic and diagram are below


 performance analysis of standalone hybrid PV, fuel cell and storage battery generation system has been done. The modeling of PV array has been done considering the temperature and sun's irradiance. A MPPT technique has been implemented to track peak power to maximize the generated energy. For this PO algorithm has been used due to its simplicity and robustness. The DC/DC converter, as an integral part of MPPT system, has also been designed. Boost converters using proportional controller (PI) have been designed for PV generation to boost voltage up to 400V. Further this PV system is integrated with fuel cell and battery storage to form a hybrid generation system. The DC output of standalone hybrid PV-SOFC-Battery generation system is inverted by a single-phase multilevel converter. This output of developed standalone hybrid PV-SOFC-Battery generation system is used to supply the single-phase load.

  • 7 years ago
  • 10
Answer(0)
