Engineering - Mechanical Engineering Auto Cad Assignment
Not Required

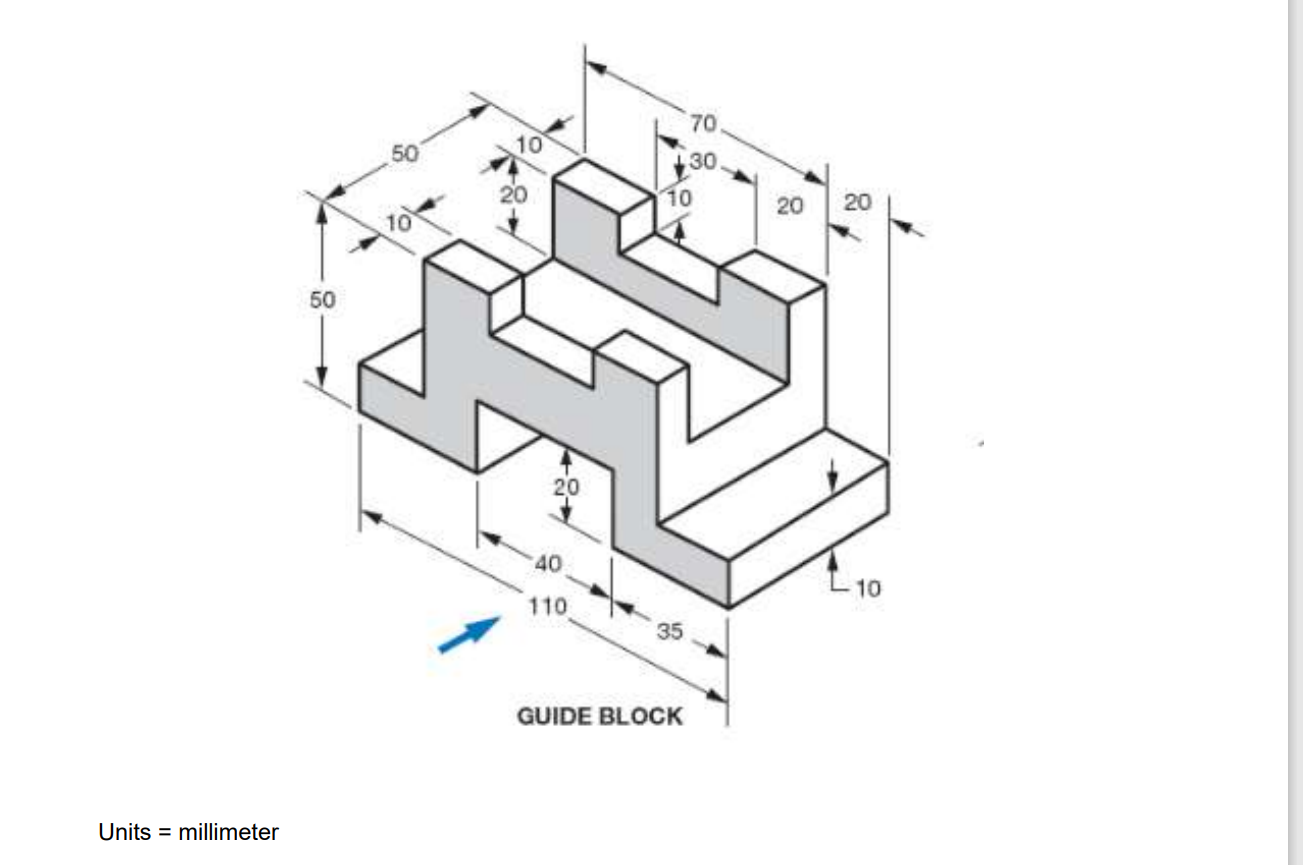

Instructions 1 On the Metric Grid Paper, using a straight edge, draw 3 orthographic views of Isometric projection of object below in the ISO standard layout for 3rd angle projection. use Autocad.
2 Starting coordinate point on Metric grid paper is at 30,20mm (x,y) and leave 30mm spacing between views.
3 Draw object using correct linework and standard line practices (line type, thick, thin)
4 Complete the title block information. Blue arrow indicates front view. 6 When completed do not show construction lines, projection lines or miter line.
Units must be in Millimeter
3 years ago
3
