Engineering - Mechanical Engineering Auto Cad Assignment

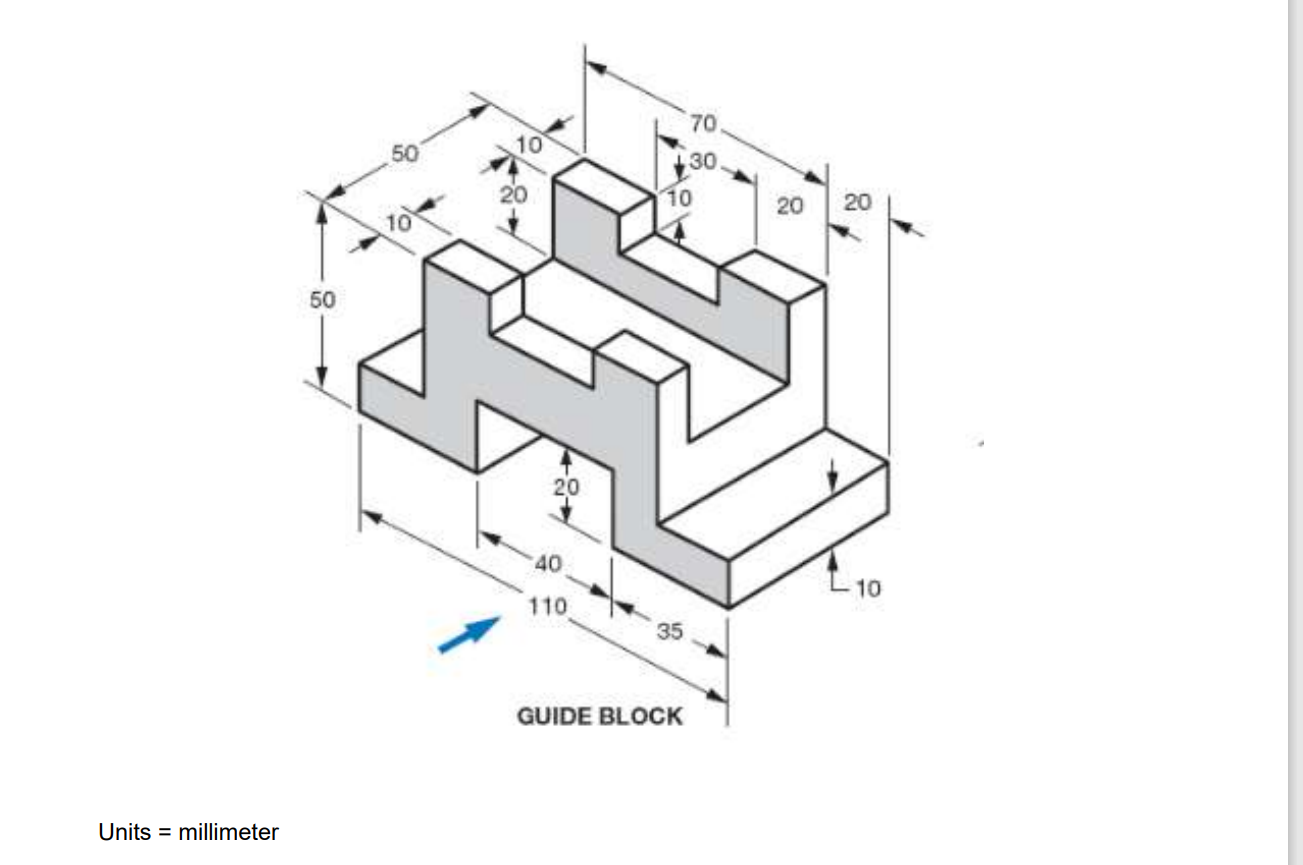

  Instructions  1 On the Metric Grid Paper, using a straight edge, draw 3 orthographic views of Isometric projection  of object below in the ISO standard layout for 3rd angle projection.  use Autocad.

2 Starting coordinate point on Metric grid paper is at 30,20mm (x,y) and leave 30mm spacing  between views.

3 Draw object using correct linework and standard line practices (line type, thick, thin)

 4 MUST be fully dimensioned as per dimensioning rules in Wk 5 presentation.

5 Complete the title block information. Blue arrow indicates front view.  6 When completed do not show construction lines, projection lines or miter line.

Units must be in Millimeter
