Embedded systems question

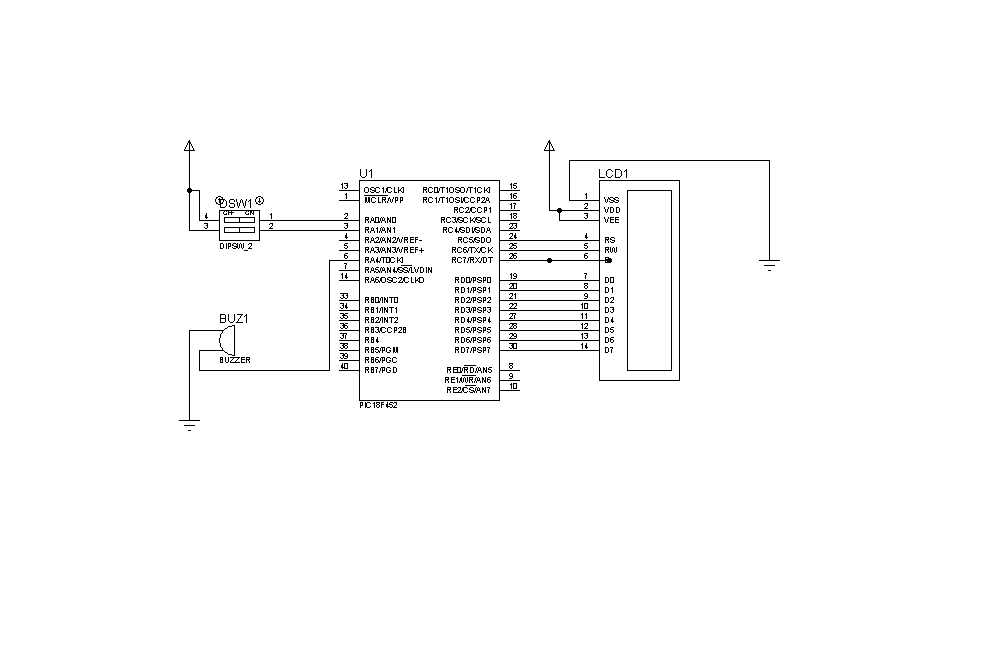

G93Given the attached hardware drawing design a solution that produces a perfect 50% duty cycle 1hz output from an available pin on the pic. Predict accuracy in terms of time until there is a one second loss. Determine whic SFRs you need to program and specify (with commenting) what values will need to be loaded into the SFRs. (timer module p.105-106) on attached data sheet. Use a 1Mhz oscilator.
11 years ago
20
Answer(0)
Bids(0)
