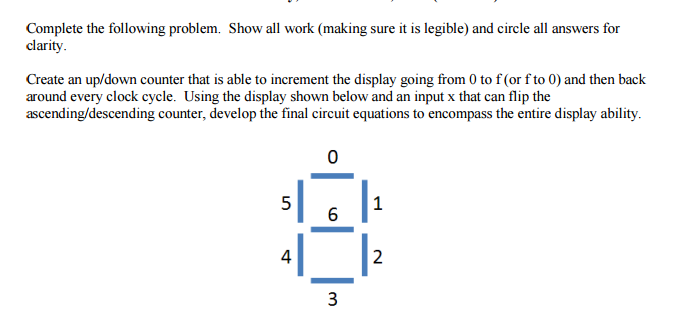

Complete the following problem. Show all work (making sure it is legible) and circle all answers for clarity. Create an up/down counter that is able to increment the display going from 0 to f (or f to 0) and then back around every clock cycle. Using the display shown below and an input x that can flip the ascending/descending counter, develop the final circuit equations to encompass the entire display ability.
