SOLID WORKS

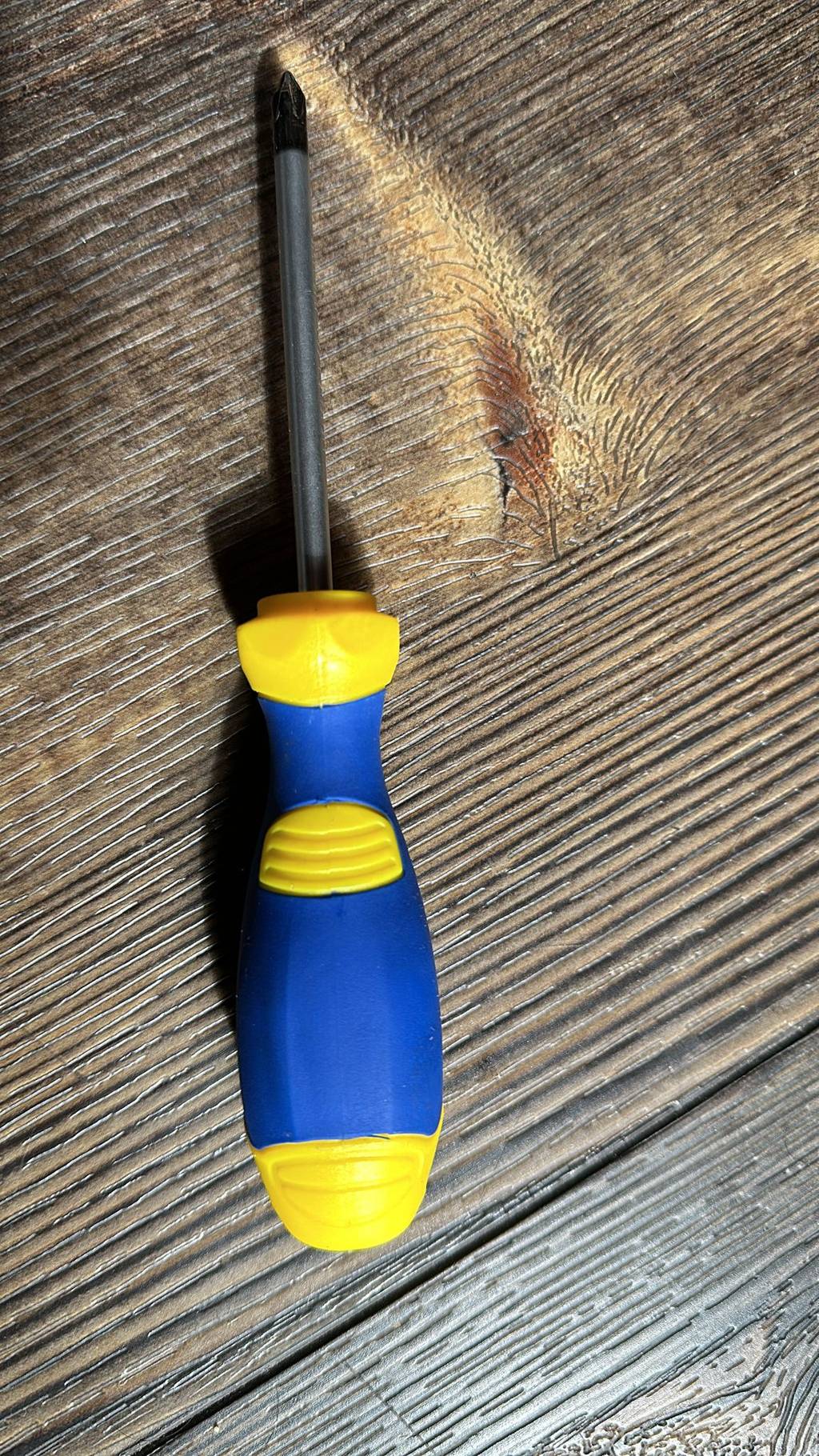

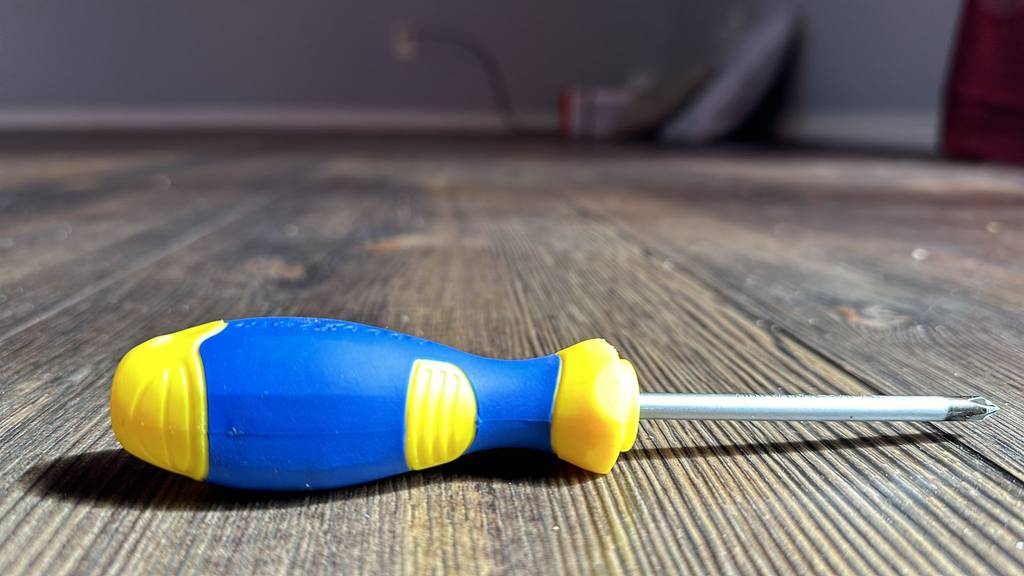

I need solid work done on the screwdriver. I have attached a reference sketch of how it should be done. And images of the screwdriver showing that work needs to be done.



Four Parts of the Assignment 1 (Each worth Five Marks)

Part 1

 GD&T controls and Datums could "Legally" be applied to attached screw driver.

Attach a Graphic image of it (a photograph or a scanned sketch) in JPEG format into the main document.

Part 2

Identify two primary Mechanical functions for this part. (e.g., Must assemble to another part(s), smooth rolling, must not wobble when placed on a flat surface).

Briefly describe the two functions (maximum of 200 words each).

Part 3

Assign a minimum of two geometric tolerances, GD&T, including at least one that requires the use of datums to the part to ensure that the part will successfully achieve its two primary functions.

Create a sketch to show where the GD&T controls and Datum(s) will be applied.

Assign physical sizes and geometric tolerances; however, you will not be marked on the magnitude of the tolerances.

Part 4

Describe the steps involved in the Inspection (setup and measurement) of both the controls applied by you.
