Sallen-Key Bandpass filter

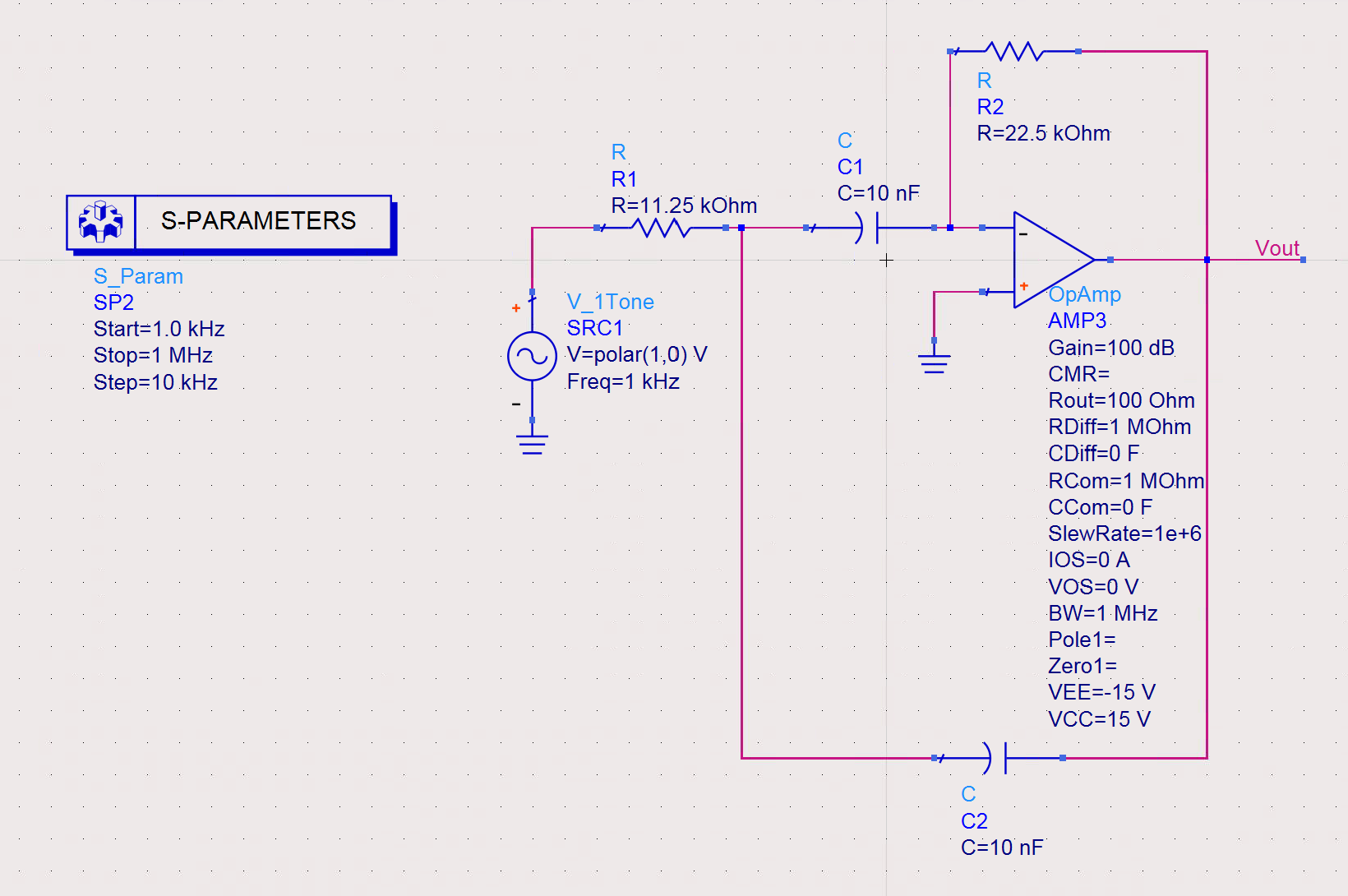

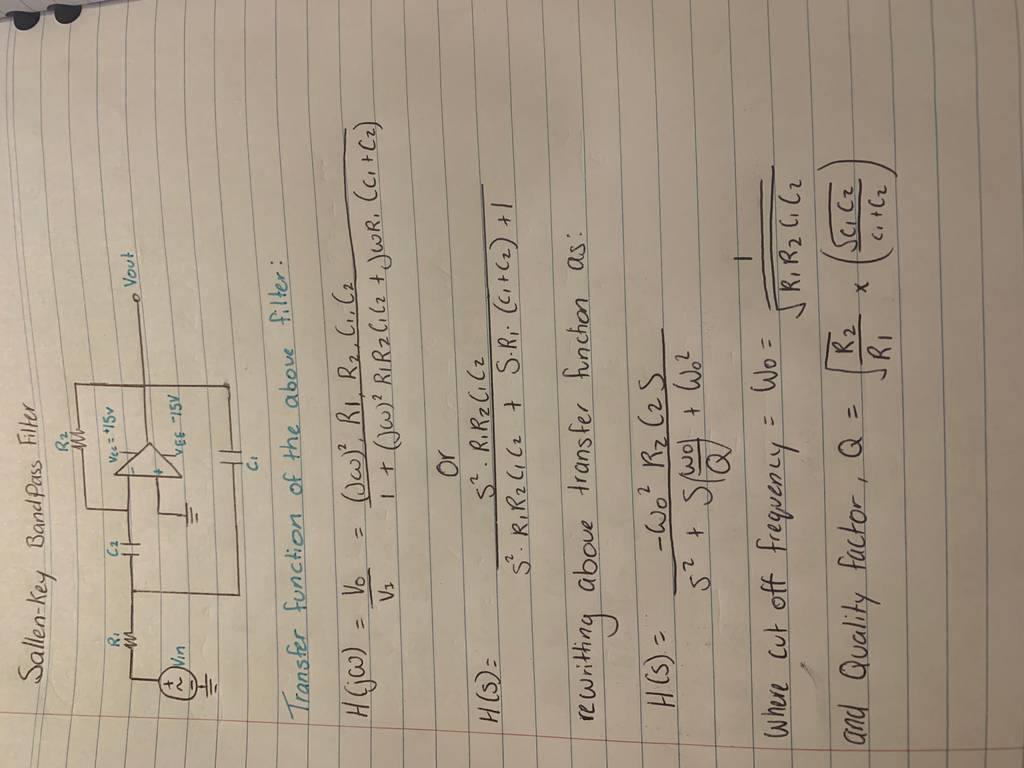

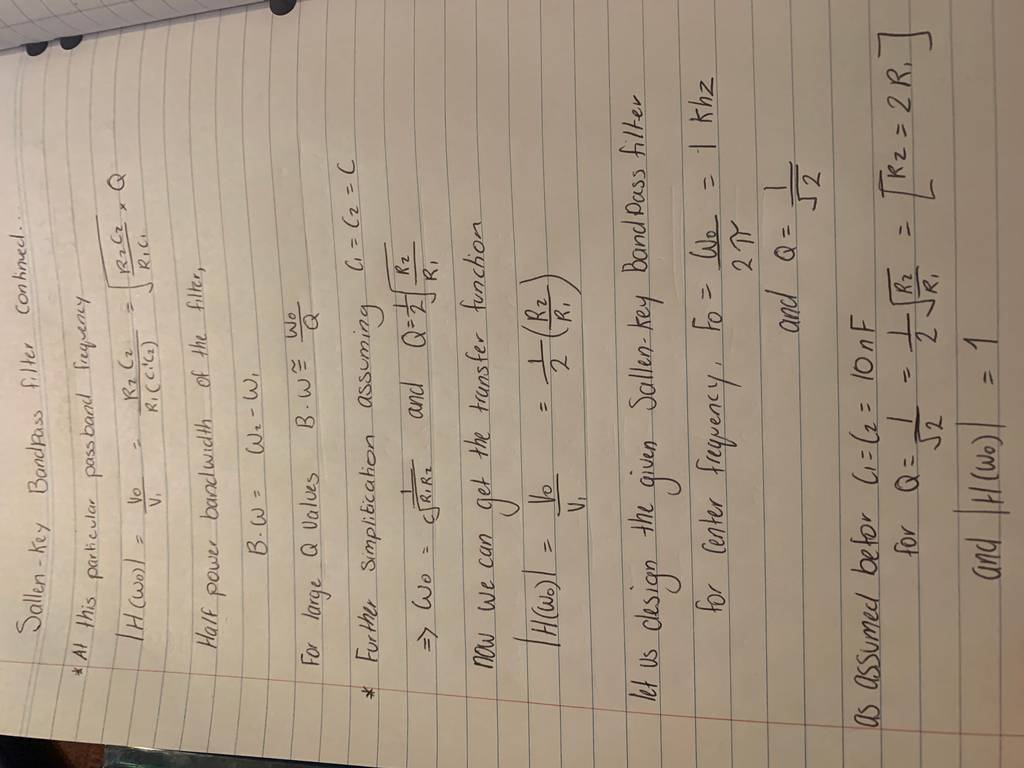

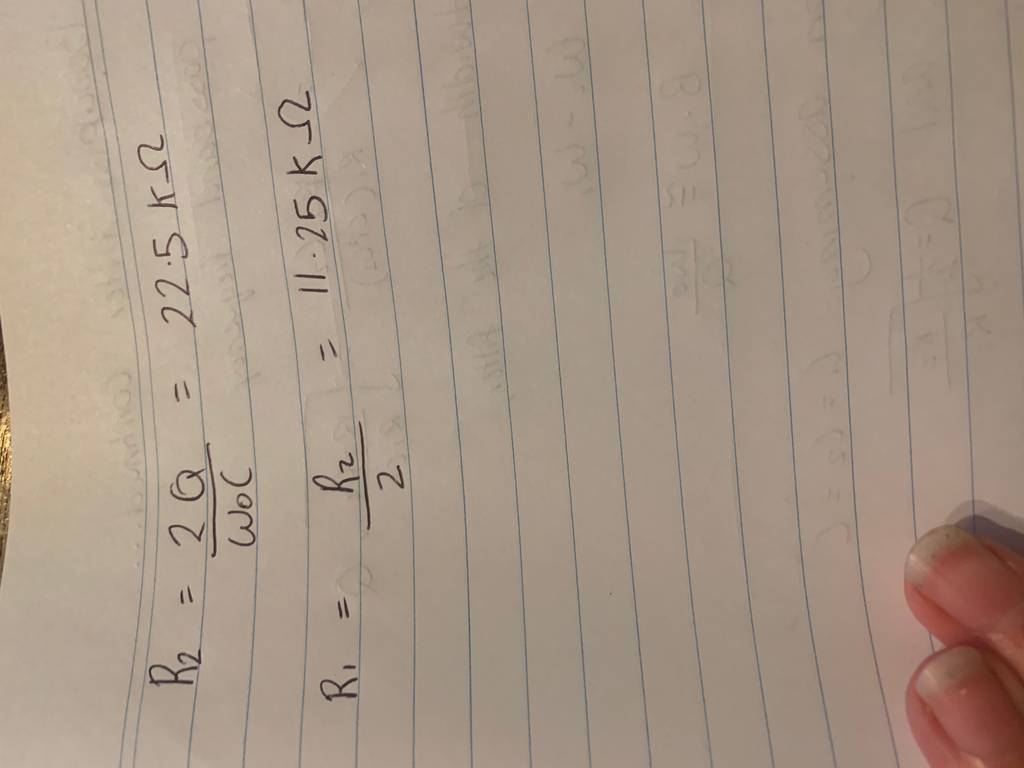

hi i was wondering if someone can please show me with step by step instructions on how to get a frequency response graph with ADS simulation using my own design i need to make for an assessment please? and if it is not able to be made maybe tell me what to fix so it will be able to get a frequency responce graph in ADS please?
6 years ago
25
Answer(1)![blurred-text]()
![]()
Purchase the answer to view it

- SallenKeyActiveFilterDesign.docx
- ADSSallenKeyActiveFilterDesign.rar
- ADSSallenKeyActiveFilterDesign.zip
- ActiveSallenKey_wrk.7zads
