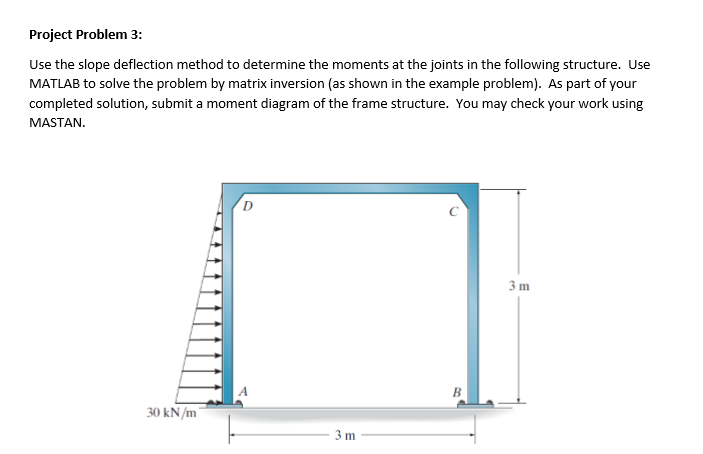

Project Problem 3

here is my current code (unfinished)

% Analysis of the Structure using the SLope Deflection Method

% Inputs Values

w= 30 % KN/m

I = 1 % Moment of Interia not given so value of one is used

E = 1 % Youngs Modulus   not given so value of one is used

% Fixed End Moments (FEM)

(FEM)ad = -(w*Lad^2)/20

(FEM)da = (w*Lad^2)/20

(FEM)dc = 0

(FEM)cd = 0

(FEM)cb = 0

(FEM)bc = 0

%Length of each member

Lad = 3

Ldc = 3

Lcb = 3

%Moment of Inertia in the sections of the beams

Iad = 1

Idc = 1

Icb = 1

% Stiffness factor in each member

Kad = (Iad)/Lad

Kdc = Idc/Ldc

Kcb = Icb/Lcb

% Angular disp calculation

ThetaA = [2*E*Kad,0,1,zeros(1,4);-2*E*Kda,-2*E*Kda,zeros(1,3);-2*E*Kda,-4*E*Kbd,0,0,1,0,0;-2*E*Kcb,zeros(1,4),1,0;-2*E*Kbc,zeros(1,5),1;0,0,1,1,0,1,0; zeros(1,4),1,0,0]

    ThetaB = [(FEM)ad;(FEM)da;(FEM)dc,(FEM)cd;(FEM)cb;(FEM)bc]

    F = ThetaA/ThetaB

% Equalibrum Equations are

% Mdc + Mda = 0

% Mcd + Mcb = 0

% Use above Equilibrium Equations to find the angles and the delta

ThetaC= 261/(56*E*I)

ThetaD = 9/(56*E*I)

Delta = 153/(56*E*I)

%Angular disp and moments

fprintf('Angular displacement at C

% Equations for End moments are then calculated, and substitution of Mdc,Mda,Mcd, and Mcb into equations it was done on paper

%Mad = -25.93

%Mda = -3.321

%Mdc = 3.321

%Mcd = 6.321

%Mbc = 9.43

%Mcb = 6.321
