Hospital Domain Diagram

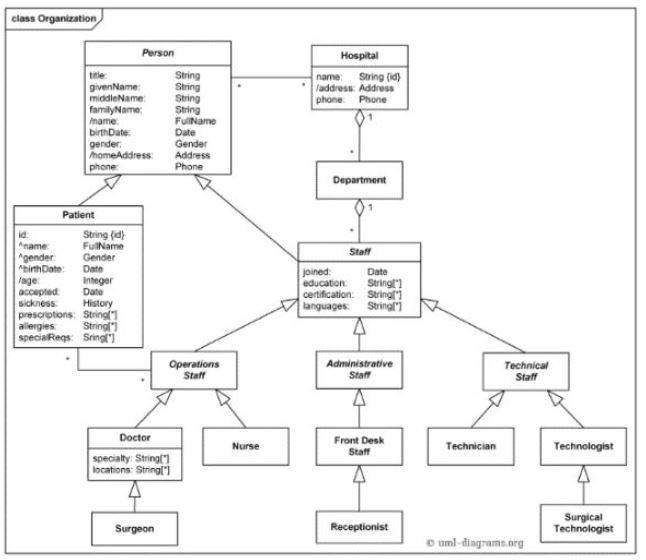

This is an example of a hospital domain model diagram. The domain model for the Hospital Management System is represented by several class diagrams. The purpose of the diagram is to show and explain hospital structure, staff, relationships with patients,and patient treatment terminology.

TASK

• In the Person class define the derived attributes.
• In the Patient class define the derived attribute.
• In the Patient class define the inherited attributes from the Person class.

Acceptable tools to use are;Word, Excel, Visio, or Access, or PowerPoint
