Electrical Exercise

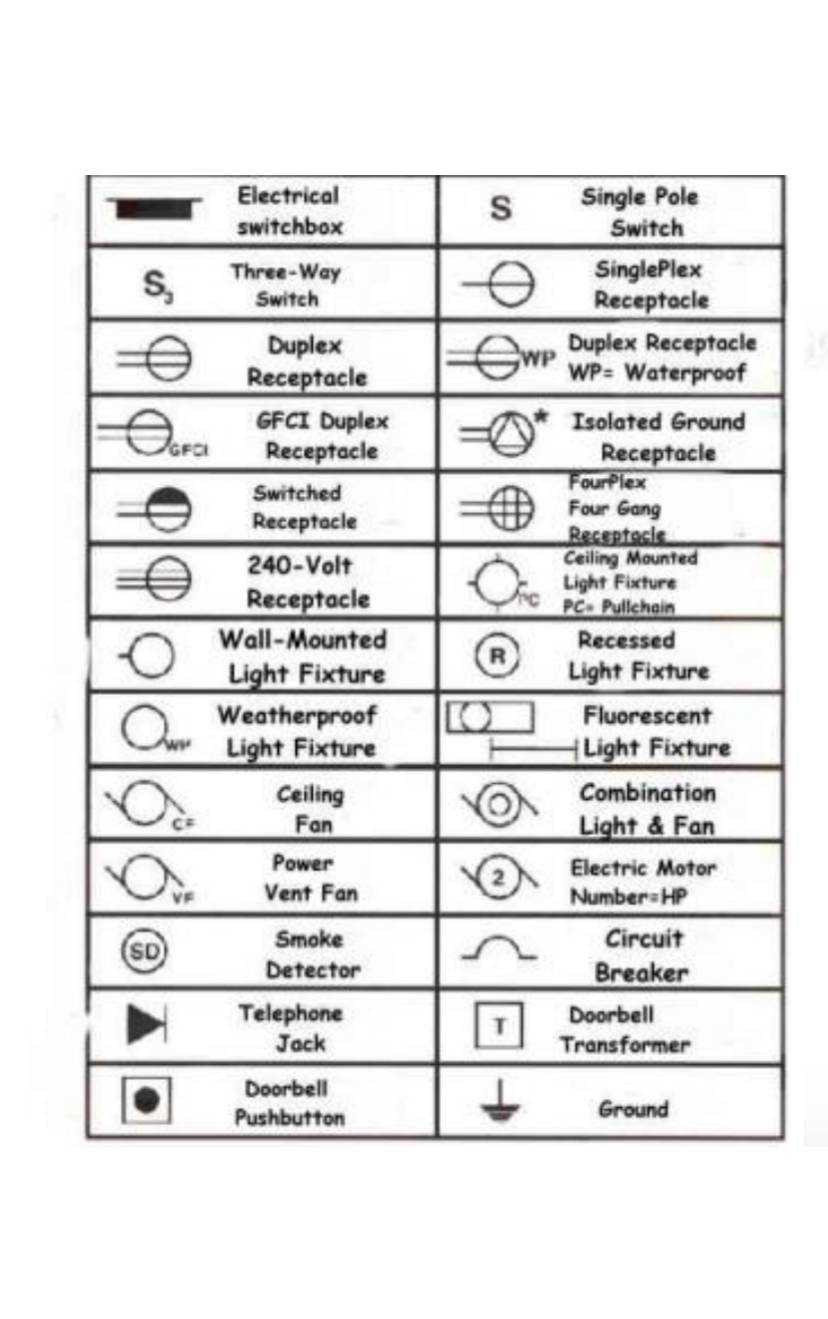

Please use the legend on the side and put the following symbols, neatly on the floor plan:

Outlets/receptacles per code and distance guidelines - GFI in kitchen

Light Switches connecting to Lights with curved lines

Lighting outlets/recessed, etc.

Be sure to indicate the height of electrical outlets/cable if different than 12"
