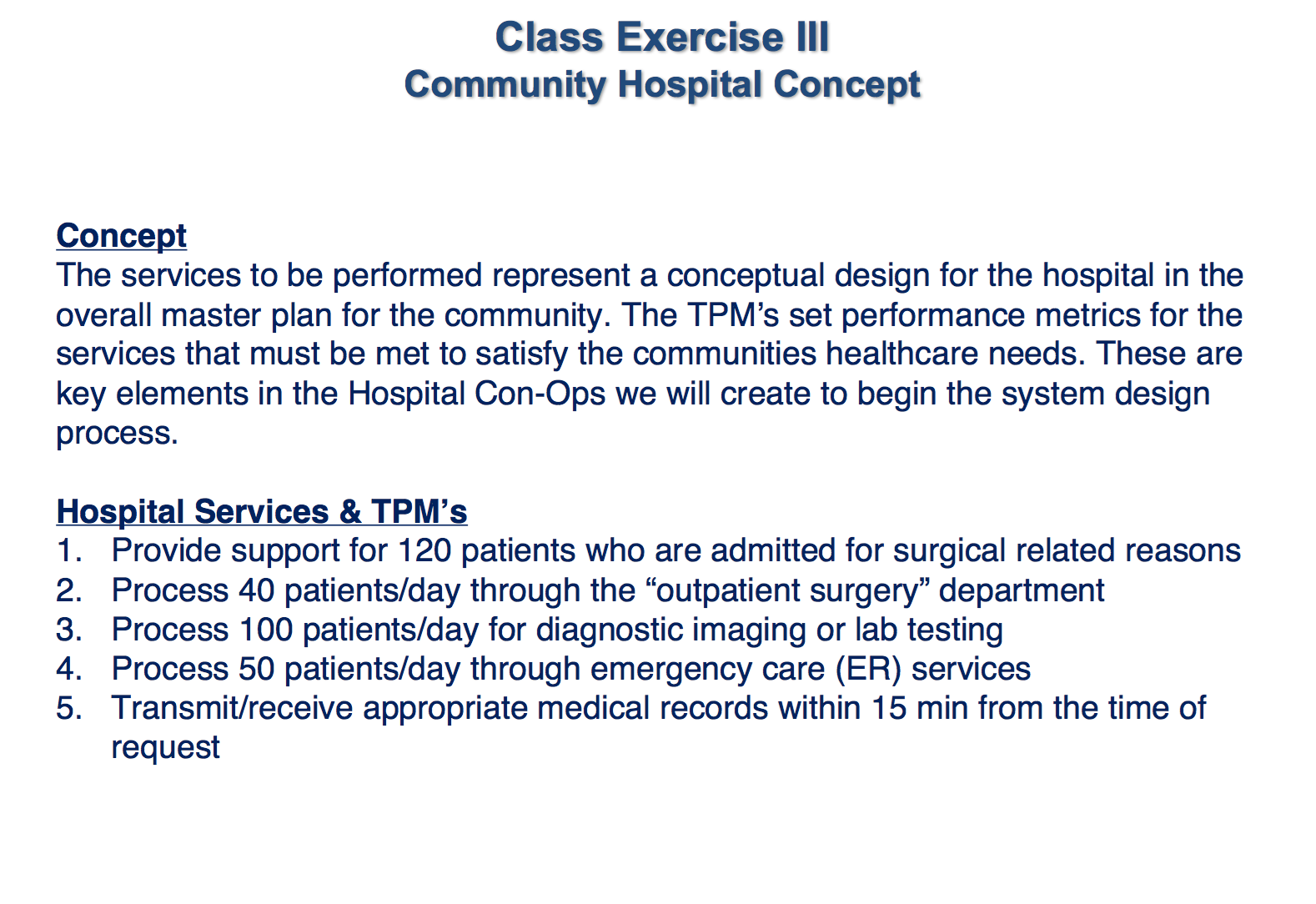

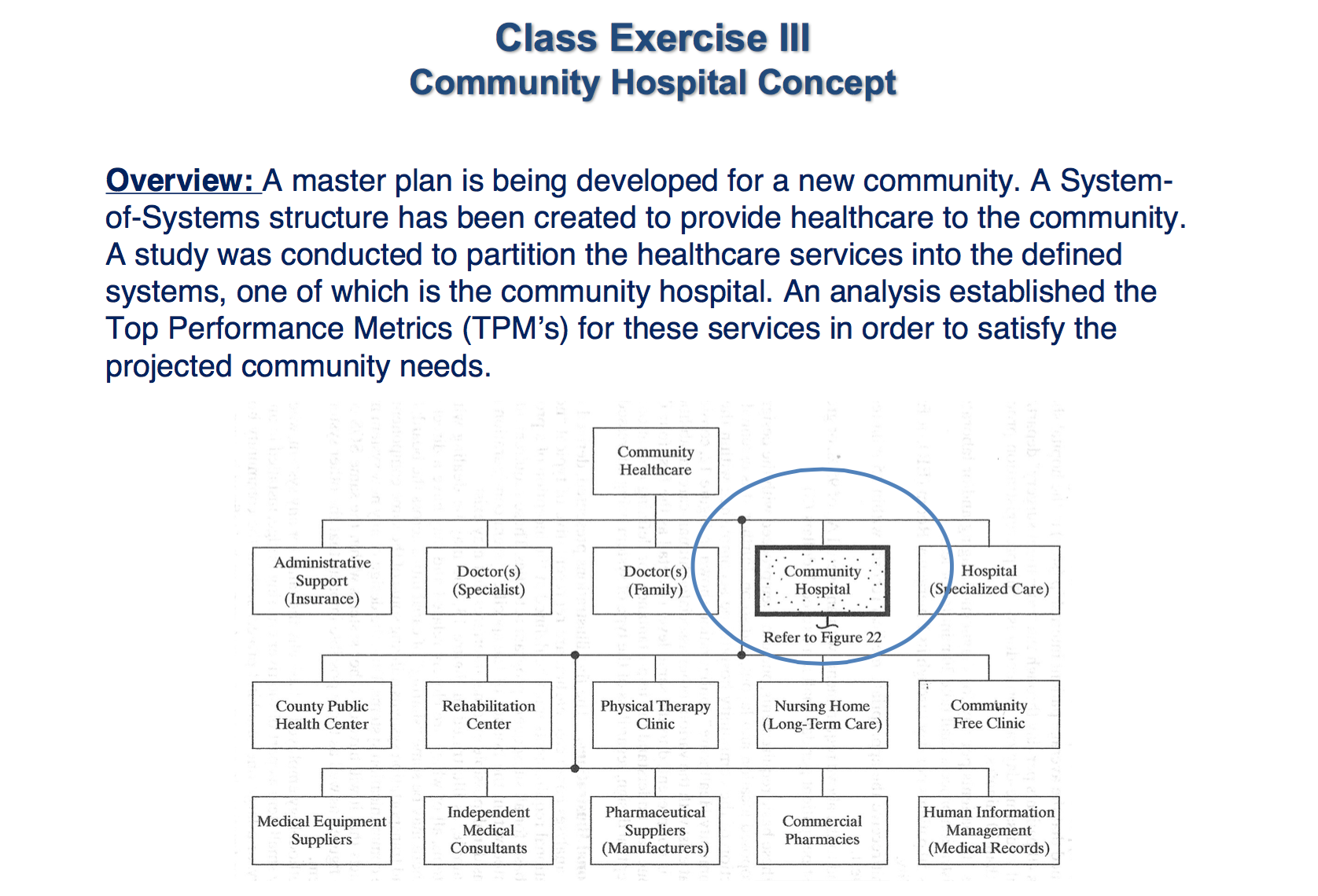

Community Hospital Concept (Use Case Scenario)

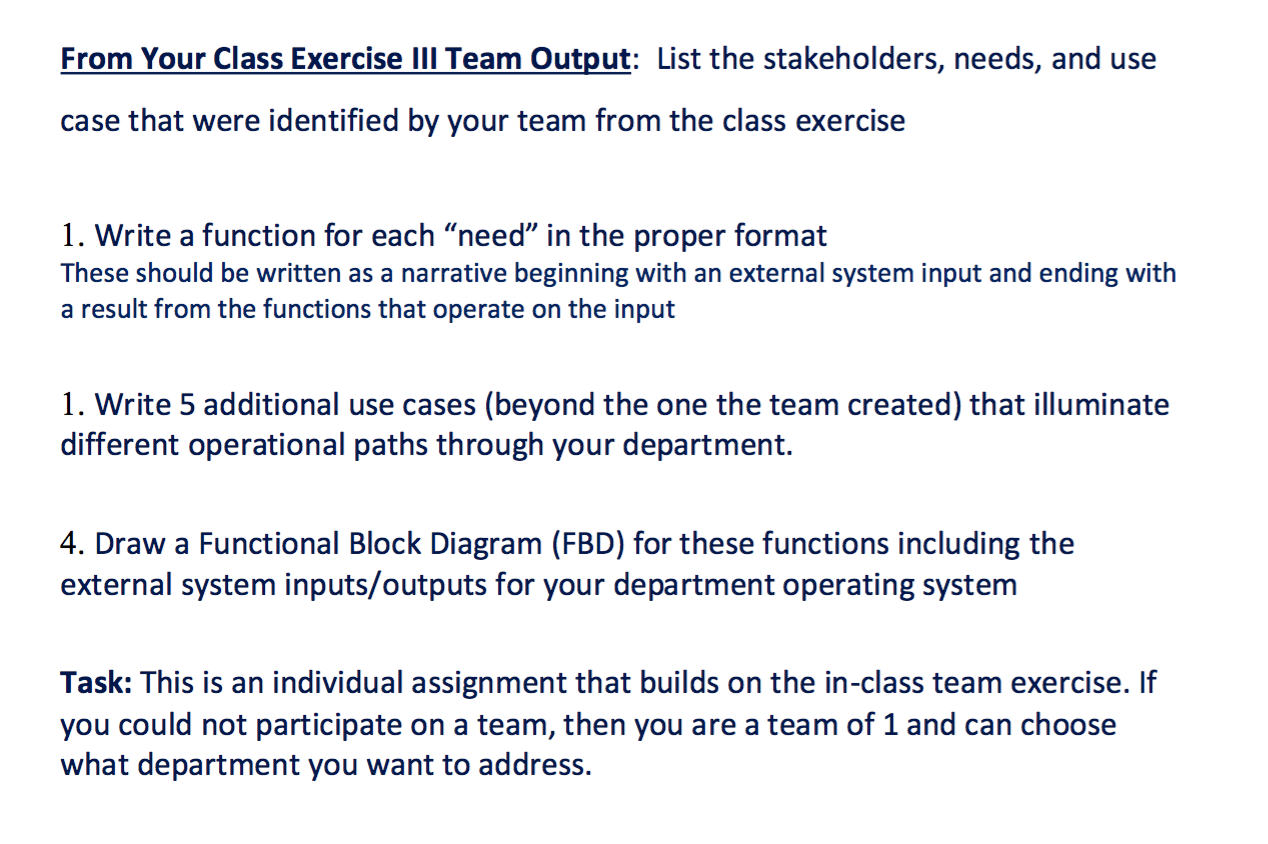

1. Write a function for each “need” in the proper format
These should be written as a narrative beginning with an external system input and ending with a result from the functions that operate on the input

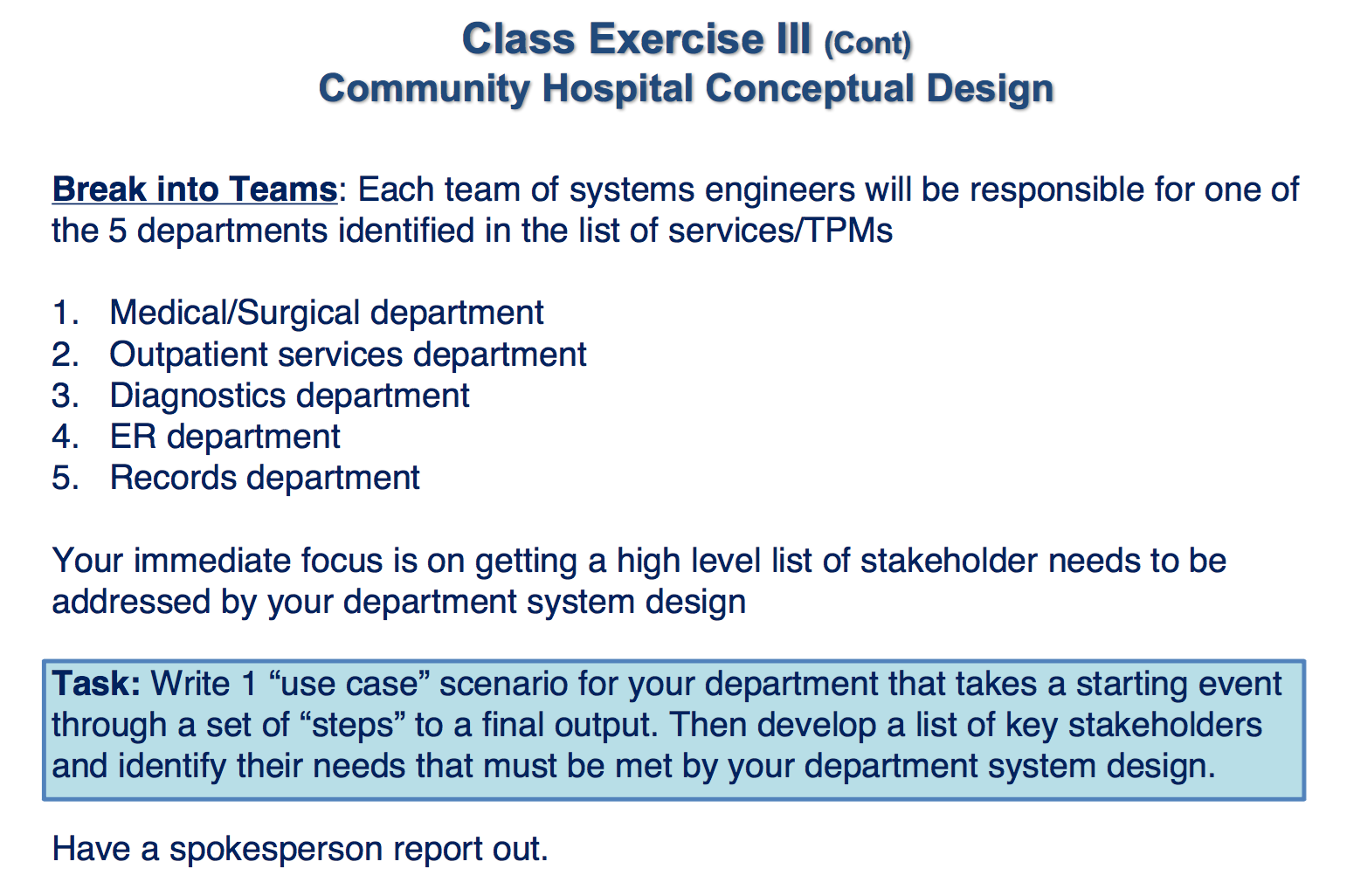

1. Write 5 additional use cases (beyond the one the team created) that illuminate different operational paths through your department.

4. Draw a Functional Block Diagram (FBD) for these functions including the external system inputs/outputs for your department operating system

Task: This is an individual assignment that builds on the in-class team exercise.  you are a team of 1 and can choose what department you want to address.

you have 5 hours max to finish the assignment.
