circuit

Due: Thursday, 04/05/2018 @ 11:59pm

Refer to Dr.  Katzs

tutorials 1-4 to see how to use PSpice.  This extra credit gives you expe-

rience using PSpice to verify the voltages in an op-amp circuit.  Work out

the following problems by hand and use PSpice to verify your calculations.

Be sure to attach the PSpice schematic files (all of them associated with

the  project)  with  all  voltages  and  currents  displayed.   Note,  if  I  cannot

open your files, you will not receive credit.  It is best to place all relevant

project files in a .zip folder and submit on canvas.  Place a scanned copy

of your written work in the .zip file as well.  Simulate the two circuits from

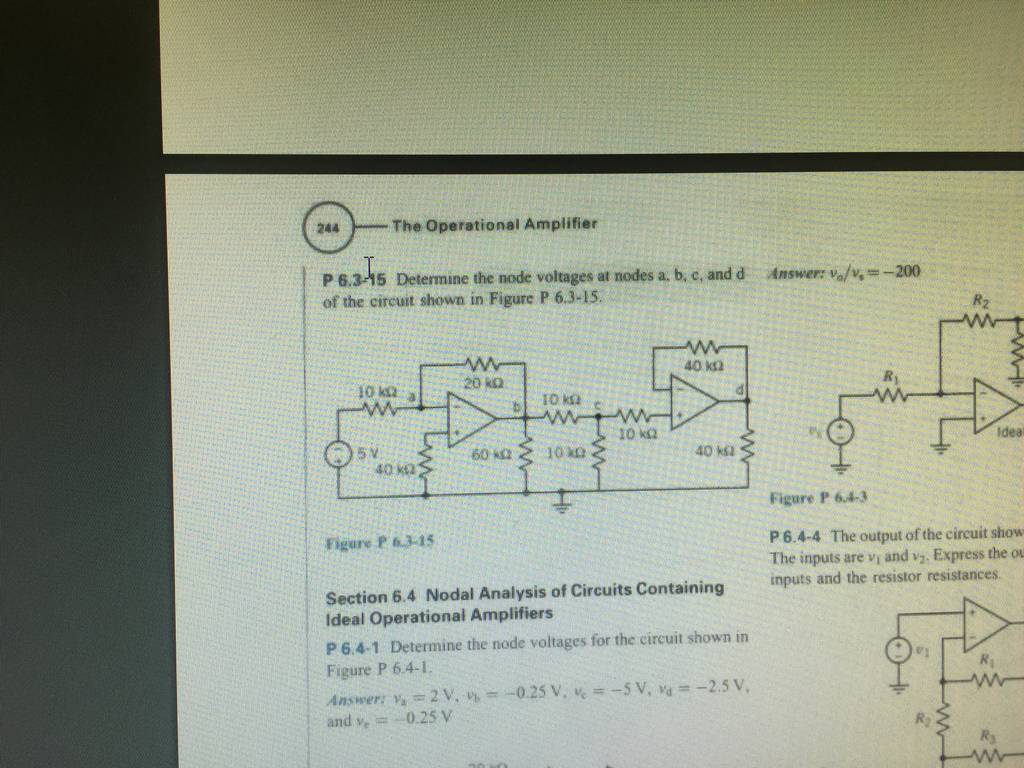

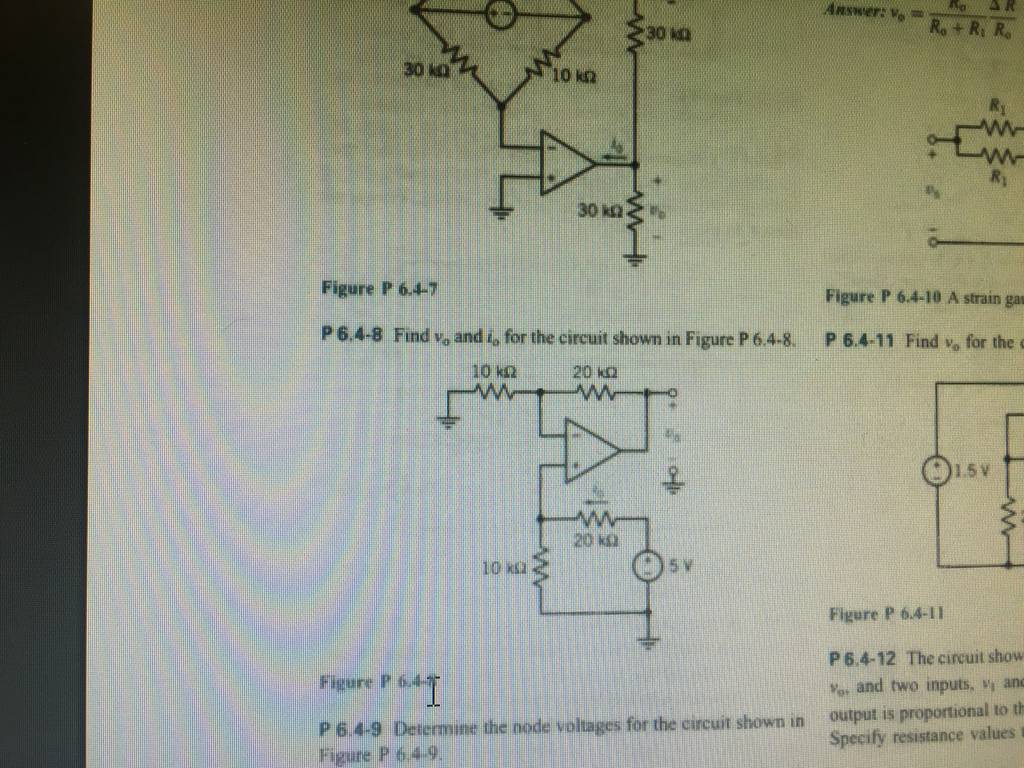

Svoboda:  Svoboda 6.3-15 and 6.4-8.
