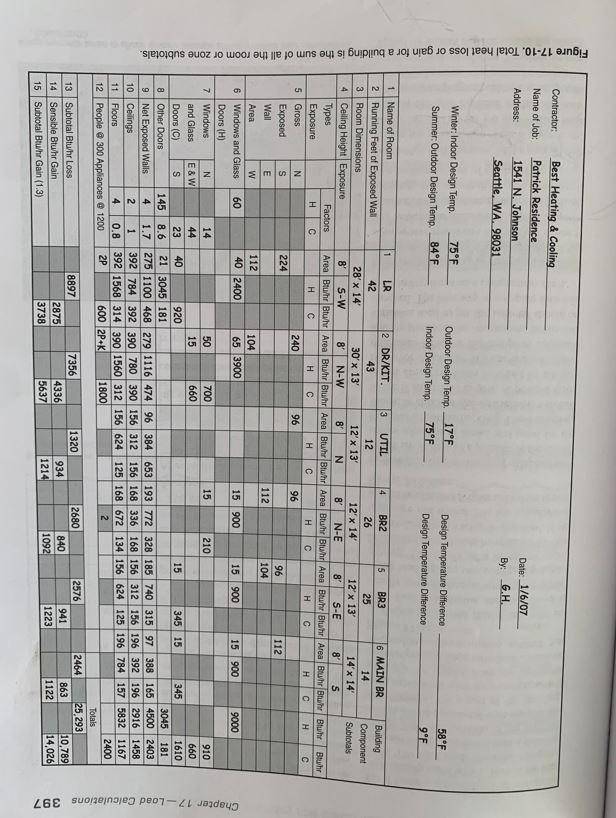

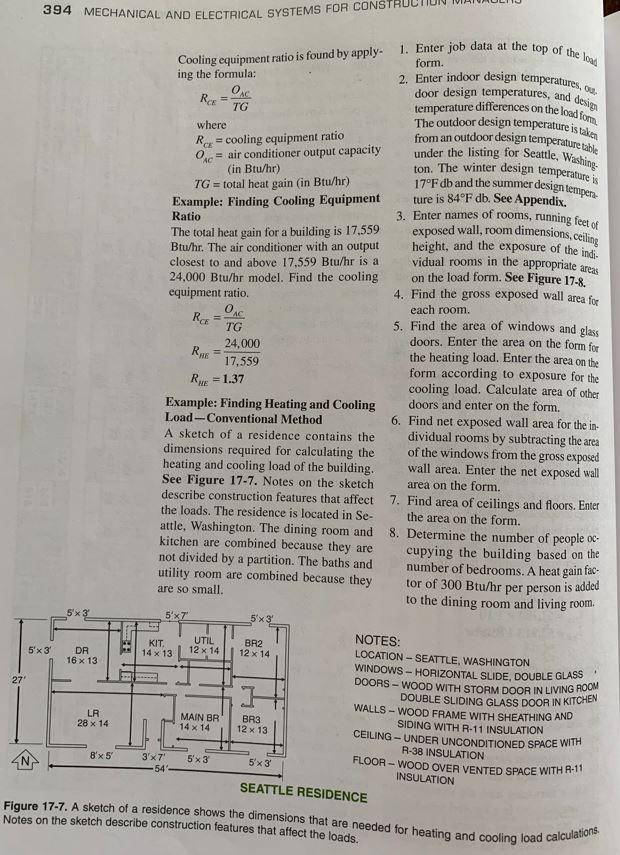

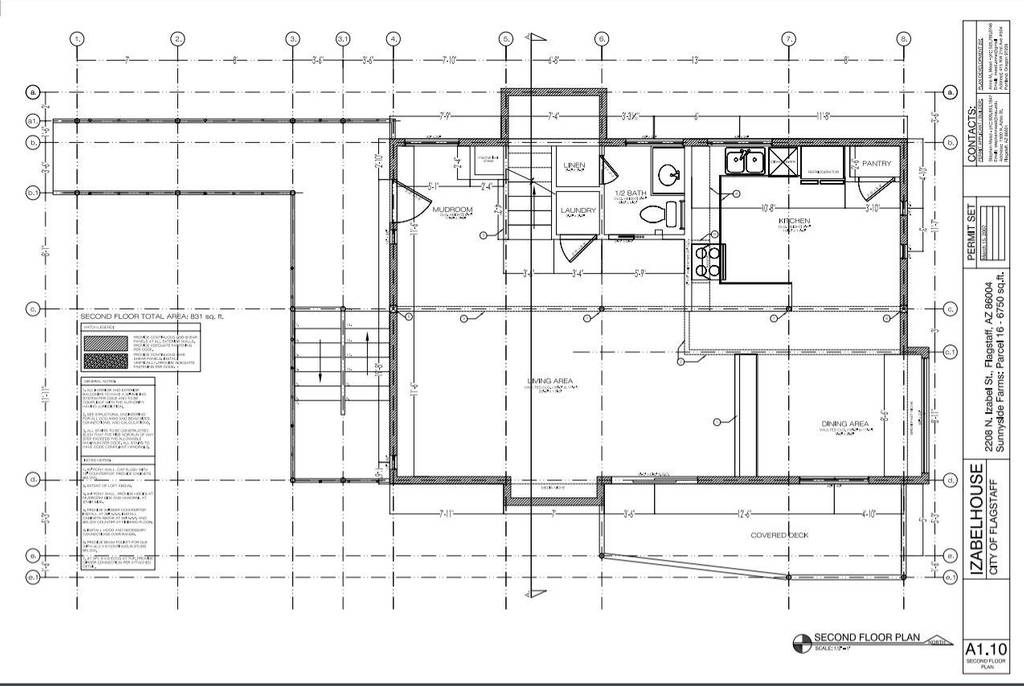

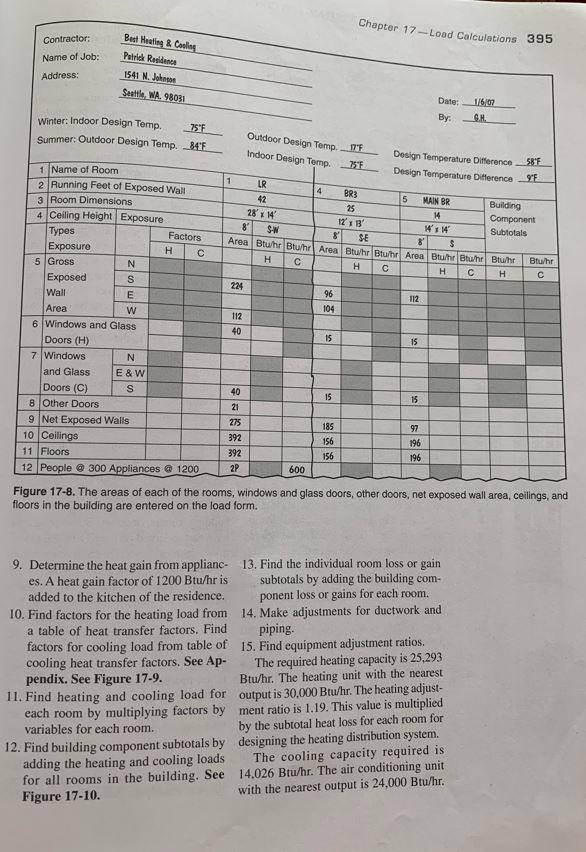

 Using the attached floor plan recreate the load calculation table shown in Figure 17-10 and fully populate to determine the heating and cooling load calculations. You can follow steps 1-15 that begin on page 394. NOTES: Location: Flagstaff, Arizona Windows: Casement with insulating glass Doors: Door to deck is double glass, entry door is weatherstripped and with storm door Walls: Block furred with R-5 insulation Ceiling: Under unconditioned space R-22 insulation (6"-7") Floor: Over unconditioned space R-19 insulation (5 1/4"-6 1/2")
