Software Engineering Assignment

Design Class Diagram

Using Visio, construct a design class diagram of the system required for the course project described in Week 2. (attached)

Notes from my teacher

It is not correct.

The domain model should contain classes for the customer, the order, pizza, topping, beverage, and side.

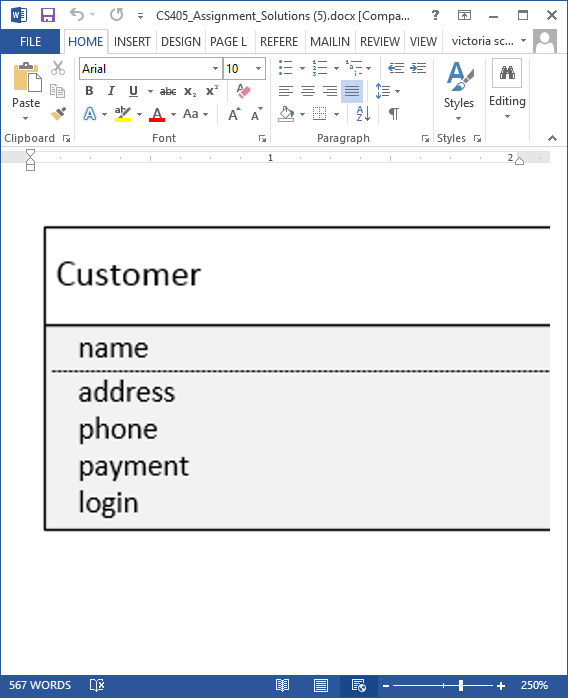

The class customer should look like Image 1

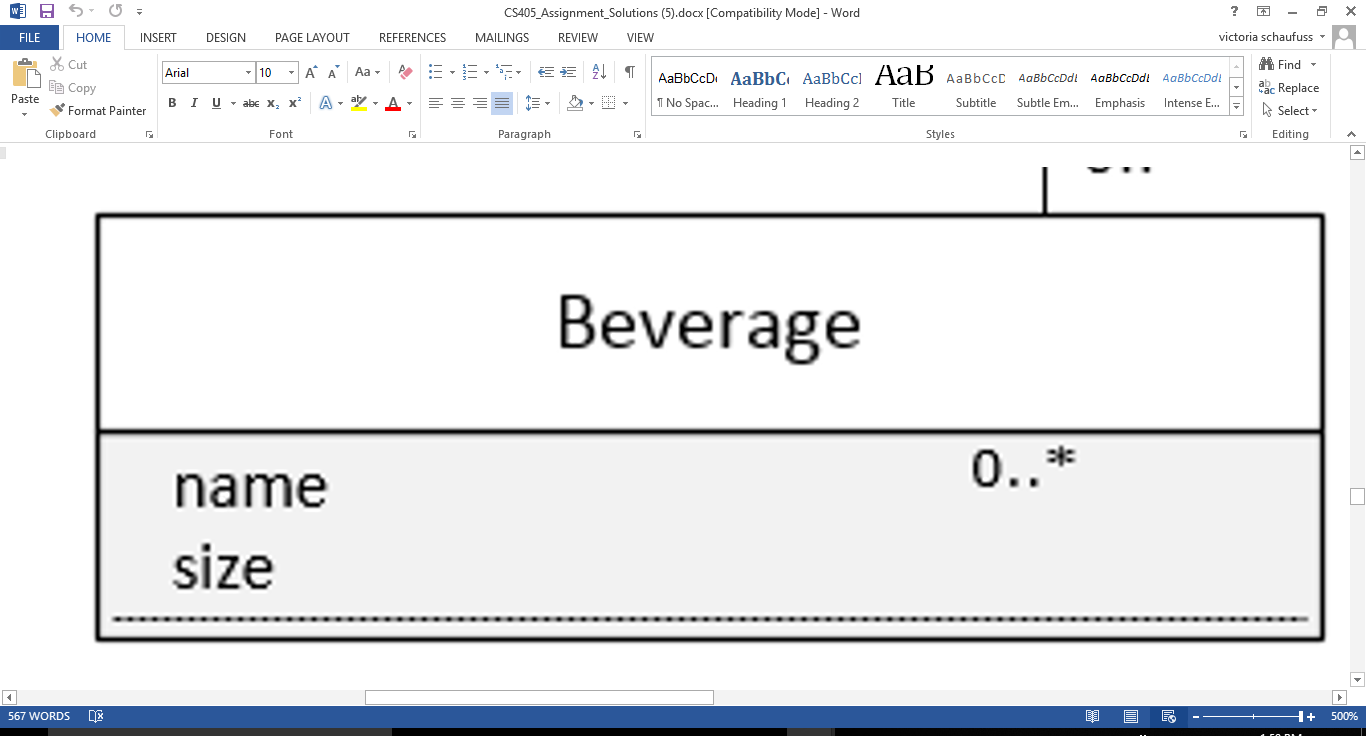

The class beverage should look like Image 2

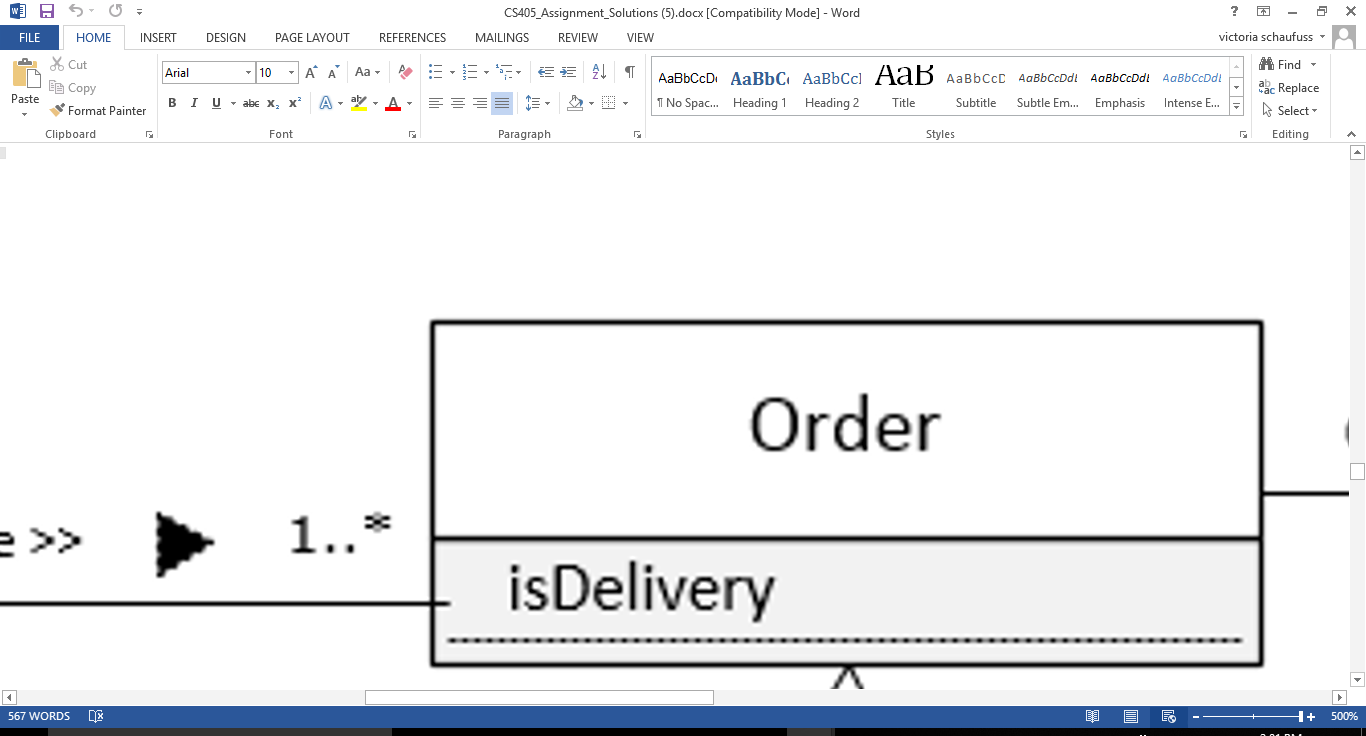

The class order should look like Image 3

Please correct and re-send :) Or ask me for more help.
