Ring Modulator
imhodgepodgeI need this done in MULTISIM

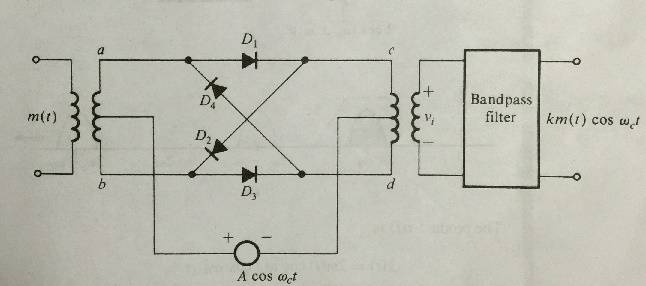

Implement the ring modulator attached. You will modify this design to transmit AM instead of DSB-SC.
Your design should meet the following specifications:
1. Accommodate a signal of up to 2 V peak to peak.
2. transmit with a fo of 10 kHz
3. Modulation index, µ = 0.7
You may use op amps, summing amplifiers and oscillators, etc. to complete the assignment.
