ECE 210 week 5 Verification of Network Theorems by simulation

Verification of Network Theorems by simulation

Lab Exercise: This will be simulation lab using MultiSim to understand the different network theorems.

Scenario/Summary: At least two of thefollowing simulations must be attempted by the student.

• Verify Loop Analysis Method by MultiSim simulation
• Verify Superpposition Theorem Method by MultiSim simulation
• Verify Thevinin’s Theorem Method by MultiSim simulation

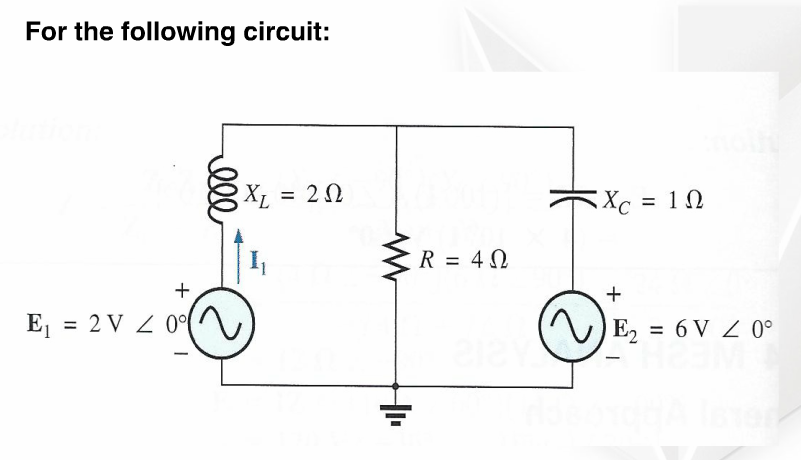

For the simulations above, the circuits must be containing resistors and one or two reactive components. Actual circuit descriptions are left to the discretion of the instructor. Complete the assignement in sumualtion and on paper.
