Create the state diagram for a soda dispenser machine. Model the system as a state machine. Then, write a program

profileadelenoinwinderland
 (Not rated)
 (Not rated)
Chat
Home>Homework Answsers>Computer Science homework help

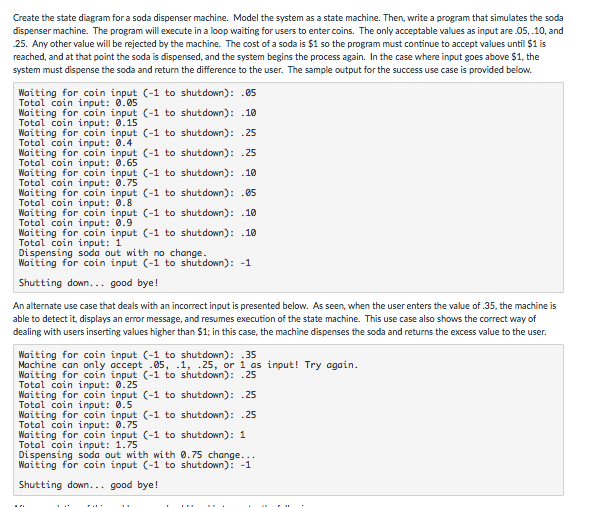

Create the state diagram for a soda dispenser machine. Model the system as a state machine. Then, write a program that simulates the soda dispenser machine. The program will execute in a loop waiting for users to enter coins. The only acceptable values as input are .05, .10, and .25. Any other value will be rejected by the machine. The cost of a soda is $1 so the program must continue to accept values until $1 is reached, and at that point the soda is dispensed, and the system begins the process again. In the case where input goes above $1, the system must dispense the soda and return the difference to the user. The sample output for the success use case is provided below. An alternate use case that deals with an incorrect input is presented below. As seen, when the user enters the value of .35, the machine is able to detect it displays an error message, and resumes execution of the state machine. This use case also shows the correct way of dealing with users inserting values higher than $1; in this case, the machine dispenses the soda and returns the excess value to the user.


Create the state diagram fora soda dispenser machine. Model the system as a state machine. Then, write a program that simulates the soda dispenser machine. The program will execute in a loop waiting for users to enter coins. The only acceptable values as input are .05, 10, and .25. Any other value will be rejected by the machine. The cost of a soda is $1 so the program must continue to accept values until S1 is reached, and at that point the soda is dispensed, and the system begins the process again. In the case where input goes above $1, the system must dispense the soda and return the difference to the user. The sample output for the success use case is provided below. Waiting for coin input (-1 to shutdown): .05 Total coin input: 0.05 Waiting for coin input (-1 to shutdown): .10 Total coin input: 0.15 Waiting for coin input (-1 to shutdown .2S Total coin input: 0.4 Waiting for coin input (-1 to shutdown) .2S Total coin input: 0.65 Waiting for coin input (-1 to shutdown): .10 Total coin input: 0.75 Waiting for coin input (-1 to shutdown .0S Total coin input 0.8 Waiting for coin input (-1 to shutdown): .10 Total coin input: 0.9 Waiting for coin input (-1 to shutdown): .10 Total coin input 1 Dispensing soda out with no change Waiting for coin input C-1 to shutdown): -1 Shutting down good by An alternate use case that deals with an incorrect input is presented below. As seen, when the user enters the value of .35, the machine is able to detect it, displays an error message, and resumes execution of the state machine. This use case also shows the correct way of dealing with users inserting values higher than $1 in this case, the machine dispenses the soda and returns the excess value to the user. Waiting for coin input (-1 to shutdown): .35 Machine can only accept .05, .1, 25, or 1 as input Try again. Waiting for coin input (-1 to shutdown): .25 Total coin input: 0.25 Waiting for coin input (-1 to shutdown) .2S Total coin input 0.5 Waiting for coin input (-1 to shutdown) .2S Total coin input: 0.75 Waiting for coi (-1 to shutdown 1. otal coin input: 1.75 Dispensing soda out with with 0.75 change. Waiting for coin input C-1 to shutdown): -1 Shutting down good by
