Question 1 (2.5 points)

What is the minimum Arc Rating of Category 3 PPE?

Save

Question 2 (2.5 points)

Heavy duty gloves are acceptable for all categories of arc flash personal protective equipment.

Save

Question 3 (2.5 points)

Your electrician is going to do some trouble shooting on this switch using a voltage meter. The switch is fixed to the wall.

What is the Limited Approach Boundary for this equipment?

Save

Question 4 (2.5 points)

What is the Arc Flash PPE required when operating a 5kV metal-clad switchgear?

Save

Question 5 (2.5 points)

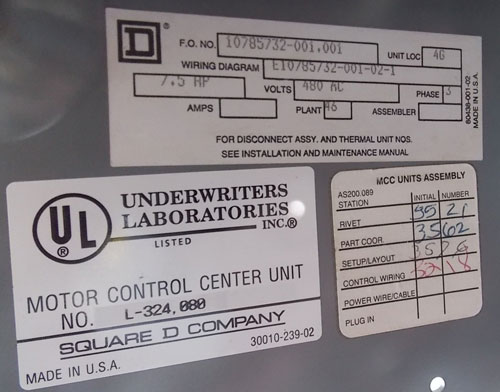

Your electrician is going to do some trouble shooting on this motor control center using a voltage meter. The motor control center is a fixed circuit.

What is the Restricted Approach Boundary for this equipment?

Save

Question 6 (2.5 points)

Your electrician is going to do some trouble shooting on this motor control center using a voltage meter.

What is the Arc Flash Boundary for this equipment?

Save

Question 7 (2.5 points)

Your electrician is going to do some trouble shooting on this a motor control center using a voltage meter.

What is the Arc Flash PPE requirement for this equipment?

Save

Question 8 (2.5 points)

What is the Arc Flash Boundary to observe when operating a 5kV metal-clad switchgear?

Save

Question 9 (2.5 points)

What is the Limited Approach Boundary to observe when operating a fixed 5kV metal-clad switchgear?

Save

Question 10 (2.5 points)

Your electrician is going to do some trouble shooting on this motor control center using a voltage meter. The motor control center is a fixed circuit.

What is the Limited Approach Boundary for this equipment?
